    20 Years Life Drum Screen For Sewage Slops Effluent Drainage Waste Water Treatment

    Ask Lasest Price
    Brand Name : Better
    Supply Ability : 90 Set/Sets per Month
    Price : $8,860.00/sets >=1 sets
    • Product Details
    • Company Profile

    20 Years Life Drum Screen For Sewage Slops Effluent Drainage Waste Water Treatment

    20 Years Life Drum Screen For Sewage Slops Effluent Drainage Waste Water Treatment

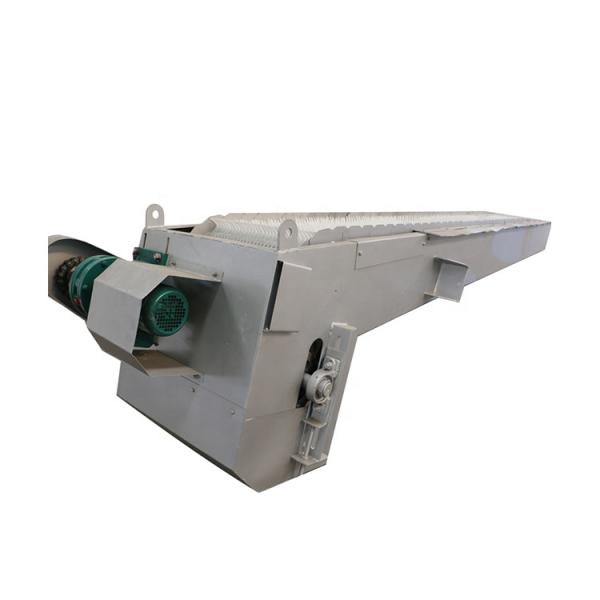

    Mechanical Grille Waste Cleaning Machine

    Description

    Self-cleaning screen waste remover is composed of main frame, driving device, tooth harrow and

    transmission chains. Teeth with ABS, nylon 6, nylon 1010 or stainless steel material are ranked on axis to form a seal chain. It pushes waste to flow into tank instead of to the top guided by rail and wheel. And brush will clean the residue on teeth.


    It is installed at water inlet of secondary grill and other water intake units where no large particles are in water. It is also can be used for industrial and municipal sewage of industries such as paper mill, textile, leather, wine and sugar making, fishing etc.


    Chain rotor multi teeth screen waste remover is developed on the basis of advance technology from similar products both at home and abroad. Several teeth (4-8 pcs) are uniformly placed on chains with

    certain space, it moves from back of grill to front so as to push waste to discharging pole along preventing board where waste can be moved by transferring device or presser.

    It is suitable for usage at premier and secondary fence of water inlet of water intake units.


    Technical Parameter

    Model

    Grille width

    (mm)

    Machine width

    (mm)

    Channel width

    (mm)

    Grille interstice

    (mm)

    Grille speed

    (m/min)

    Discharge

    height

    Grille

    angle

    Power

    (KW)

    GSC300

    300

    430

    500

    1-60

    2.2

    Customize

    60-80°

    0.75

    GSC500

    500

    630

    700

    1-60

    2.2

    Customize

    60-80°

    0.75

    GSC800

    800

    930

    900

    1-60

    2.2

    Customize

    60-80°

    1.1

    GSC1000

    1000

    1130

    1200

    1-60

    2.2

    Customize

    60-80°

    1.1

    GSC1200

    1200

    1330

    1400

    1-60

    2.2

    Customize

    60-80°

    1.5

    GSC1500

    1500

    1630

    1700

    1-60

    2.2

    Customize

    60-80°

    1.5

    GSC1800

    1800

    2090

    2210

    1-60

    2.2

    Customize

    60-80°

    2.2

    GSC2200

    2200

    2490

    2610

    1-60

    2.2

    Customize

    60-80°

    3.0
