330180220cm Underground Type MBR Sewage Treatment Systems for Water Treatment Plant

Ask Lasest Price
Brand Name :	BETTER
Price :	$8,697.00/sets

Add to Cart

Product Details
Company Profile

330180220cm Underground Type MBR Sewage Treatment Systems for Water Treatment Plant

The waste water treatment machine is developed on the basis of operational experience of sewage treating device at home and broad with advanced biological treating method. while combing our own research and practice.
lt can remove BOD5,COD,NH3-N with stable performance and effective treating capacity, characterristics of autorun and non-floor occupation saves cost and enjoy easy maintenance. Grass and flowers can be planted on the surface so the environment won't be affected.
Water outlet quality meets national discharge standard and reclamed water reuse system can be designed together with underground sewage disposal system according to client's actual needs.

Technological Process

Sewage → Grille → Regulating pond
→ MBR Bioreactor → Discharge(reuse)
1. Temperature: 5℃~45℃, average
membrane aperture 0.10 μm.
2. PH: 2~12, membrane thickness: 40μm.
3. Outlet water turbidity: <1 NTU , outlet
water SS <1mg/L.
4. Membrane area: 8m2, advised
gas-water ratio: 25:1~30:1.
5. Operating pressure: -0.01 ~ -0.03MPa.

Application

lt is suitable for recovery and reuse of water from hotels, restaurants, sanitariums, hospitals, home communities, villages and

towns, stations, airports,harbors, factries,mines,troops, scenic spots, industrial organic sewage similar to municipal sewage,etc.

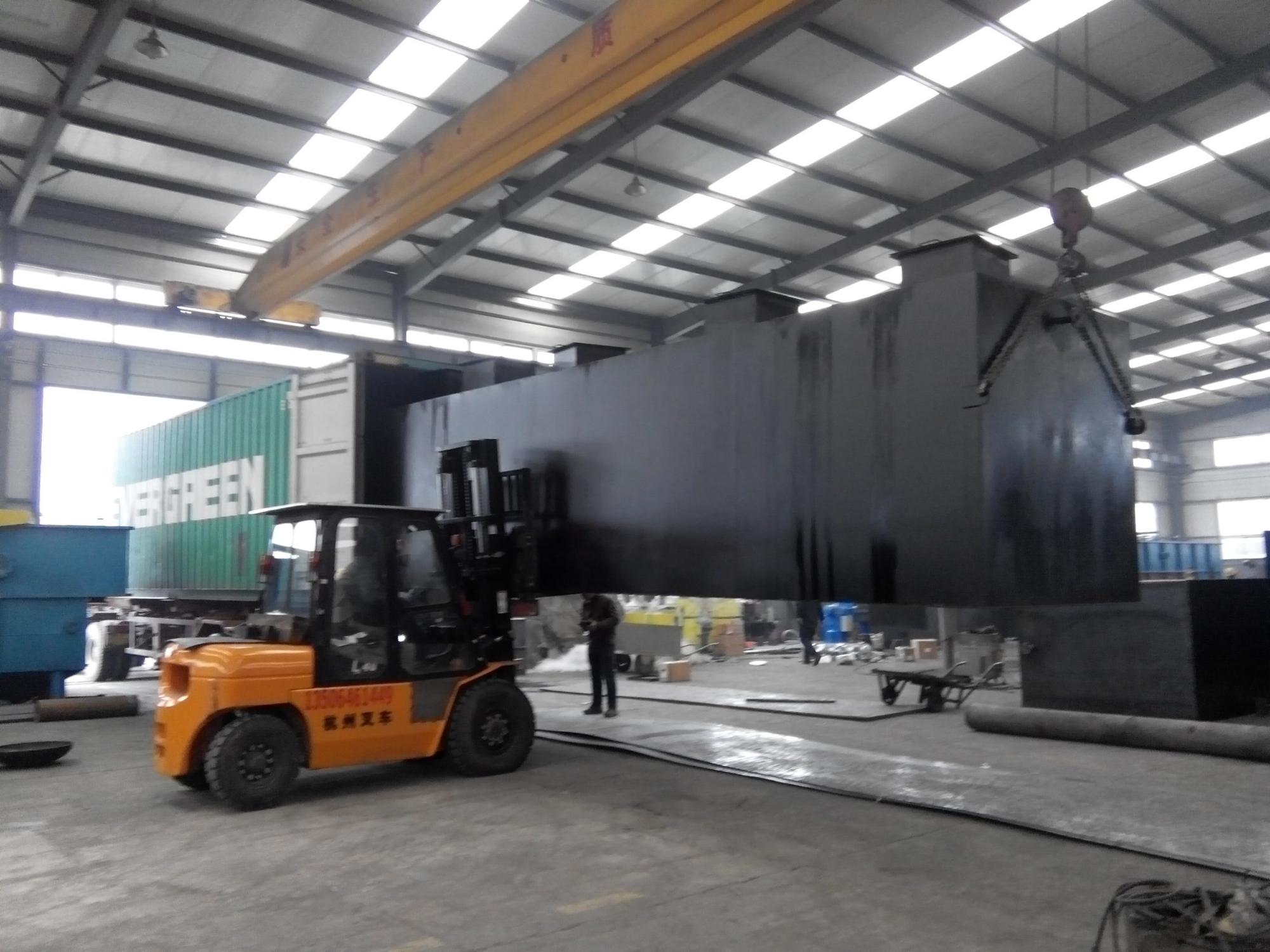

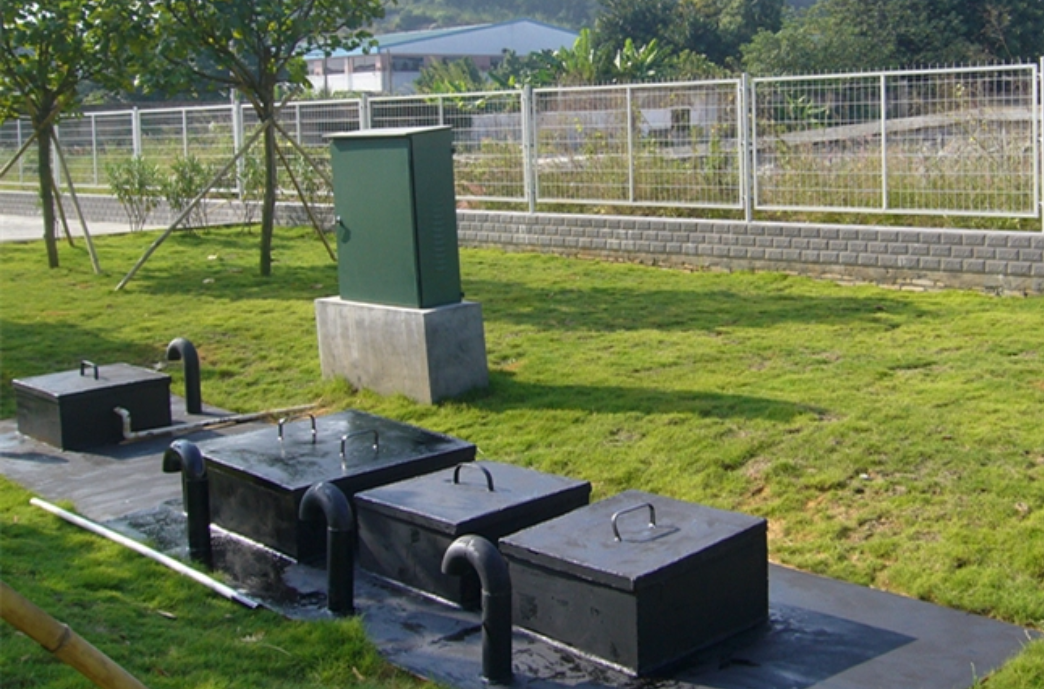

Detailed Images

Size Information

Size Chart of This Design

Model	MBR 0.5	MBR 5	MBR 20	MBR 30
Capacity(m3/h)	0.5	5	20	30
Inlet water BOD5(mg/L)	150~400
Outlet water BOD5(mg/L)	20~60
Floor space(m2)	4.5	15	51	76

Packing&Shipping

After Sales Service

Company Introduction

certificate

FAQ

Q: How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.

Q: when will it be shipped? A: It depends on the quantity ordered.It's usually about 15 days.

Q: How to install after the equipments arriving destination?
A: We will provide detailed illustrations to you. And we will send a technicians to guide for installation and debugging. after
debugging equipment, he will teach your workers how to use it and how to maintain it. Q: How about the warranty? A: If there is any malfunction of the equipment during the warranty period, our company promises to propose a solution within 24 hours. If it is caused by non-human causes, our company provides repairs free of charge and guarantees that the equipment is running well again.
