Suspended Grease Removal Dissolving Air Flotation Equipment for Industrial Wastewater

Ask Lasest Price
Brand Name :	BETTER
Certification :	CE ISO9001
Supply Ability :	50 Set/Sets per Month
Price :	$3,888.00/pieces 2-2 pieces

Add to Cart

Product Details
Company Profile

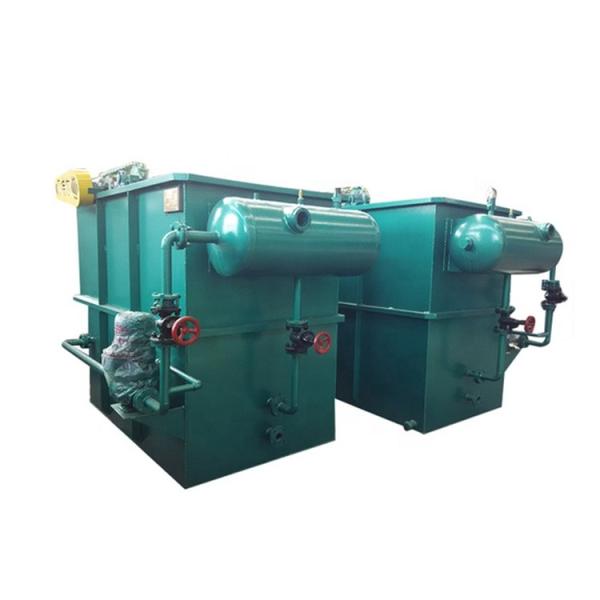

Suspended Grease Removal Dissolving Air Flotation Equipment for Industrial Wastewater

PRODUCT DESCRIPTION

YW series Dissolved Air Flotation is mainly for solid-liquid or liquid-liquid separation. Large sum of micro bubbles produced by dissolving and releasing system adhere to solid or liquid particles with same density as waste water to make the whole float to the surface thus achieve the aim of solid-liquid or liquid-liquid separation.

Suspended Grease Removal Dissolving Air Flotation Equipment for Industrial Wastewater

Model	Capacity (m³/h)	Dissolved Gas water (m³/h)	Main dynamo power (KW)	Foam scraper power (KW)	Air compressor power (KW)	Dissolved air tank size (mm)	Overall dimension (mm)
YW-5	4-5	1.5-2	3	0.55	1.5	φ400×1000	3300×1800×2000
YW-10	8-10	2-3	4	0.55	1.5	φ500×1512	4000×2100×2200
YW-20	15-20	5-7	7.5	0.55	1.5	φ500×1512	4600×2400×2200
YW-30	20-30	6-10	7.5	0.55	1.5	φ500×1512	5200×2600×2400
YW-40	30-40	8-13	7.5	0.75	2.2	φ600×1880	6000×2600×2400
YW-50	40-50	15-20	7.5	0.75	2.2	φ600×1880	7000×2600×2400
YW-60	50-60	18-27	11	0.75	2.2	φ600×1880	7600×2800×2400
YW-70	60-70	22-30	11	0.75	2.2	φ650×2034	8400×2800×2400
YW-80	70-80	24-32	11	0.75	3	φ650×2034	9200×2800×2400
YW-105	90-105	30-35	15	1.5	3	φ700×1980	10000×2800×2600
YW-150	125-150	60-80	22	1.1	4	φ700×1980	13500×2800×2600
YW-200	175-200	80-100	30	1.1	5.5	φ800×2100	15800×2800×2600
YW-250	225-250	100-120	37	1.1	5.5	φ800×2400	15200×3400×2600
YW-300	280-300	120-180	37	1.1	5.5	φ1000×2900	19200×3400×2800

APPLICATION

1.Separation of oily(including emulsified) wastewater from petroleum, chemical and mechanical processes.
2.Recovery of sewage organic matter.(such as recovery of pulp fibers and fillers from paper mill wastewater).
3.Treatment of wastewater with high chroma and low dissolved oxygen.Such as textile printing and dyeing wastewater treatment .
4.Treatment of oxide-rich wastewater containing algae.
5.Treatment of low temperature and low turbidity sewage.
6.Replace secondary sedimentation tank, suitable for the situation that is easy to produce sludge swelling;It is suitable for the concentration of residual activated sludge and convenient for the treatment of filter press.

ABOUT US

OUR SERVICE

Product Performance:

1.The DAF machine relies on a large number of micro-bubbles to remove the flocculation of the adhesion reaction,so the flocculation requirements are not high ,which can reduce the flocculation time and save the flocculation agent.

2.High yield per unit area,small pool capacity and floor area,saving land and cost.

3.Convenient sludge discharge ,low water consumption;low moisture content of sludge.

4.Shallow tank body depth ,simple tank structure .The machine can be opened and stopped at any time according to the situation and the actual needs , without affecting the water quality ,easy operation and maintenance.

RECOMMEND PRODUCT

PACKAGING AND TRANSPORTATION

FAQ

Q: How to buy your incinerator?
A: You can provide us the waste kind and waste quantity(connect us for more details). we will recommand you the suitable model incinerator.

Q: How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.

Q: What is the delivery time?
A: It depends on order quantities. Generally speaking, the delivery time will be within 3 to 4 weeks.

Q: How to install after the equipments arriving destination?
A: We will provide detailed illustrations to you. And we will send a technician to guide for installation and debugging. After debugging equipment, he will teach your workers how to use it and how to maintain it.
