Sewage Solid-Liquid Separation Dissolved Air Floating Machine 3-37KW for Pretreatment

Ask Lasest Price
Brand Name :	BETTER
Certification :	CE ISO9001
Supply Ability :	50 Set/Sets per Month
Price :	$8,888.00/pieces 2-2 pieces

Add to Cart

Product Details
Company Profile

Sewage Solid-Liquid Separation Dissolved Air Floating Machine 3-37KW for Pretreatment

Product Description

YW series Dissolved Air Flotation Machine is mainly used for solid-liquid separation. Large sum of micro bubbles produced by dissolving and releasing system adhere to solid or liquid particles which with the same density as wastewater to make the whole float to the surface thus achieve the goal of separation.

Product performance:

1.The DAF machine relies on a large number of micro-bubbles to remove the flocculation of the adhesion reaction, so the flocculation requirements are not high, which can reduce the flocculation time and save the flocculation agent. 2.High yield per unit area,small pool capacity and floor area,saving land and cost. 3.Convenient sludge discharge, low water consumption;low moisture content of sludge. 4.Shallow tank body depth, simple tank structure. The machine can be opened and stopped at any time according to the situation and the actual needs, without affecting the water quality, easy operation and maintenance.

Structure

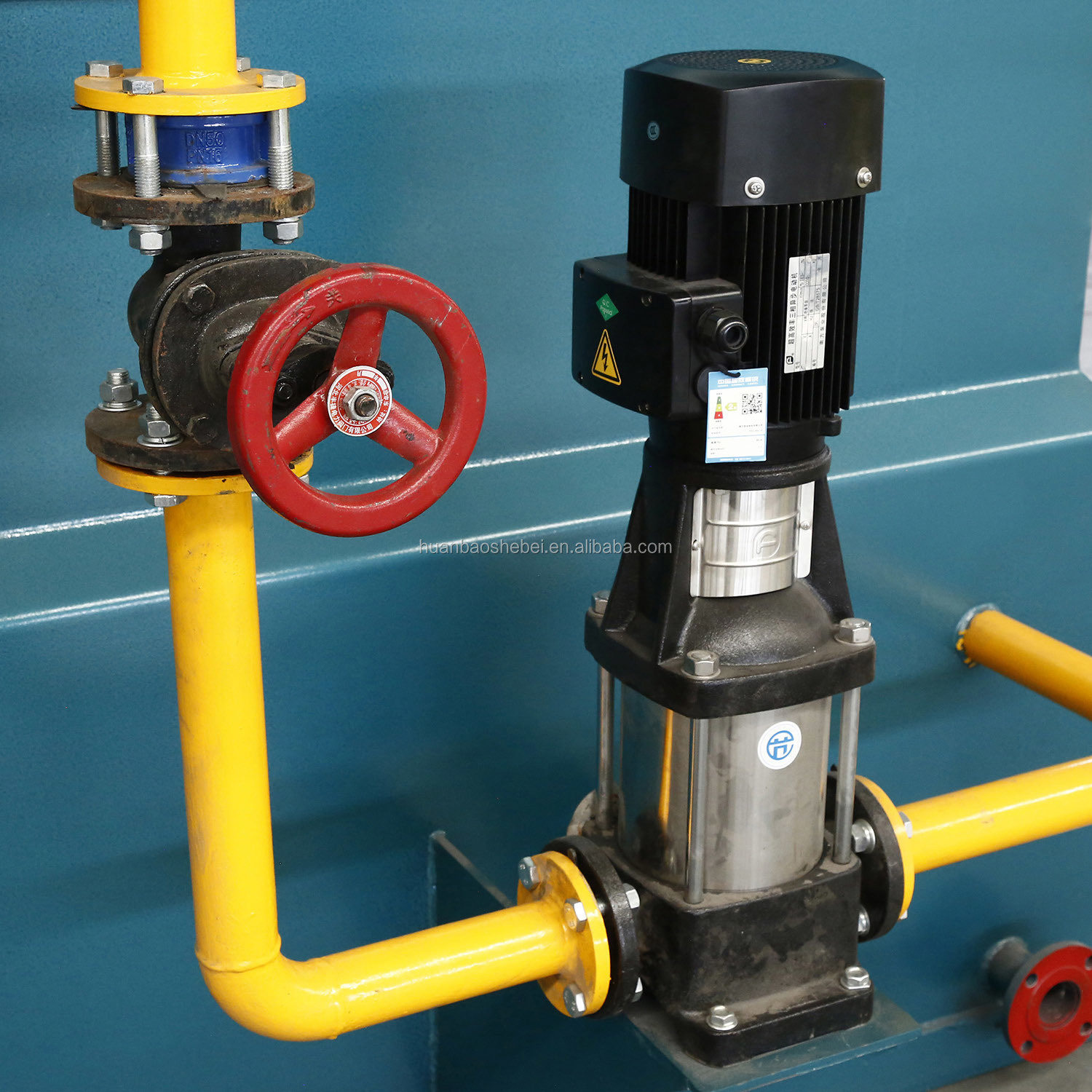

1.Air dissolving system

(Dissolved air pump Air compressor

Dissolved air tank Release)

2.Air flotation tank

3.Scraping system

(Foam scraper reducer

Chain Scraping board)

Features of DAF
1).Design treatment capacity:5-300 m3/h.
2).High-rate clarifier for high SS water (light particles, oil and colloid).
3).Fully(100%) manufactured in the factory, and no need secondary welding. It costs 3h for 2 manpower to assemble.
4).Indoor or outdoor layout (environmental temperature should be over 0°C).
5).Apply to automatic & continuous operation.
6).Design life: Carbon steel material:>10years;
304 Stainless steel material:>20years.
316 Stainless steel material:>25 years

Technical parameter

Model	Capacity	Air water amount(m³/h)	Air pump(kw)	Foam scraper power(kw)	Air compressor power(kw)	Air tank size(mm)	Dimension(mm)
YW-5	4-5	1.5-2	3	0.55	1.5	400×1000	3300×1800×2200
YW-10	8-10	2-3	4	0.55	1.5	500×1512	4000×2100×2200
YW-15	10-15	4-6	7.5	0.55	1.5	500×1512	4400×2100×2200
YW-20	15-20	5-7	7.5	0.55	1.5	500×1512	4600×2400×2200
YW-30	20-30	6-10	7.5	0.75	1.5	500×1512	5200×2600×2400
YW-40	30-40	8-13	7.5	0.75	1.5	600×1880	6000×2600×2400
YW-50	40-50	15-20	7.5	0.75	2.2	600×1880	7000×2600×2400
YW-60	50-60	18-27	11	0.75	2.2	600×1880	7600×2800×2400
YW-70	60-70	22-30	11	0.75	2.2	650×2034	8400×2800×2400
YW-80	70-80	24-32	11	1.1	2.2	650×2034	9200×2800×2400
YW-100	90-100	30-35	15	1.1	3	700×1980	10000×2800×2600
YW-150	125-150	60-80	22	1.1	4	800×1980	13500×2800×2600
YW-200	175-200	80-100	30	1.1	5.5	800×2100	15800×2800×2600
YW-250	225-250	110-120	37	1.1	5.5	800×2400	18000×2800×2600
YW-300	280-300	120-180	37	1.1	5.5	1000×2900	19200×3400×2800

Testing

Our workshop

Packing & Delivery

Company Profile

Customers from different countries

FAQ

1. who are we?
We are based in Shandong, China, start from 2009,sell to Domestic Market(62.00%),Southeast Asia(10.00%),South America(9.00%),Africa(8.00%),Mid East(3.00%),South Asia(2.00%),Southern Europe(2.00%),Eastern Asia(2.00%),Central America(2.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Sewage Treatment Equipment; Waste Incinerator; Sludge Dewater Machine; Organic Waste Aerobic Compost Machine

4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,French
