    Product Description

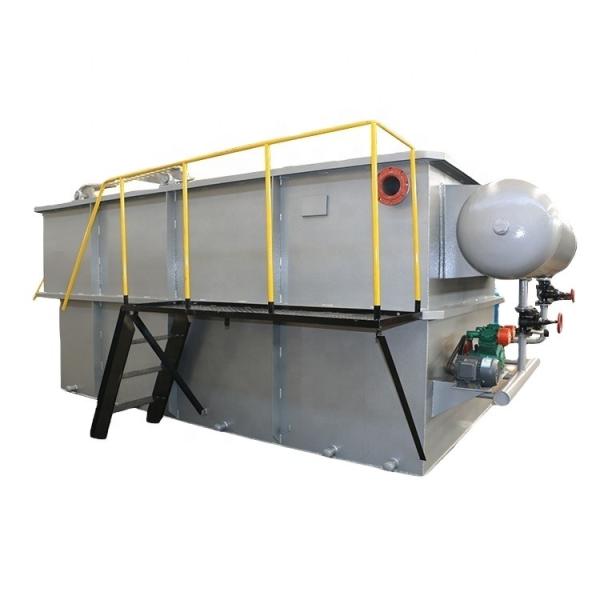

    YW series Dissolved Air Flotation is mainly for solid-liquid or liquid-liquid separation. Large sum of micro bubbles produced by dissolving and releasing system adhere to solid or liquid particles with same density as waste water to make the whole float to the surface thus achieve the aim of solid-liquid or liquid-liquid separation.
    2024 Dissolved Air Flotation Machine Sewage Treatment Equipment with 1000kg Capacity
    2024 Dissolved Air Flotation Machine Sewage Treatment Equipment with 1000kg Capacity
    2024 Dissolved Air Flotation Machine Sewage Treatment Equipment with 1000kg Capacity
    DFC can be divided 5、10/20/30/40/50/60/80/100/150/200/250/300 m3/h by capacity, also can be customized by clients' requirements.
    Model
    Capacity
    (m³/h)
    Dissolved Gas water
    (m³/h)
    Main dynamo power
    (KW)
    Foam scraper power
    (KW)
    Air compressor power
    (KW)
    Dissolved air tank size
    (mm)
    Overall dimension
    (mm)

    YW-5
    4-5
    1.5-2
    3
    0.55
    1.5
    φ400×1000
    3300×1800×2000
    YW-10
    8-10
    2-3
    4
    0.55
    1.5
    φ500×1512
    4000×2100×2200
    YW-20
    15-20
    5-7
    7.5
    0.55
    1.5
    φ500×1512
    4600×2400×2200
    YW-30
    20-30
    6-10
    7.5
    0.55
    1.5
    φ500×1512
    5200×2600×2400
    YW-40
    30-40
    8-13
    7.5
    0.75
    2.2
    φ600×1880
    6000×2600×2400
    YW-50
    40-50
    15-20
    7.5
    0.75
    2.2
    φ600×1880
    7000×2600×2400
    YW-60
    50-60
    18-27
    11
    0.75
    2.2
    φ600×1880
    7600×2800×2400
    YW-70
    60-70
    22-30
    11
    0.75
    2.2
    φ650×2034
    8400×2800×2400
    YW-80
    70-80
    24-32
    11
    0.75
    3
    φ650×2034
    9200×2800×2400
    YW-105
    90-105
    30-35
    15
    1.5
    3
    φ700×1980
    10000×2800×2600
    YW-150
    125-150
    60-80
    22
    1.1
    4
    φ700×1980
    13500×2800×2600
    YW-200
    175-200
    80-100
    30
    1.1
    5.5
    φ800×2100
    15800×2800×2600
    YW-250
    225-250
    100-120
    37
    1.1
    5.5
    φ800×2400
    15200×3400×2600
    YW-300
    280-300
    120-180
    37
    1.1
    5.5
    φ1000×2900
    19200×3400×2800
    2024 Dissolved Air Flotation Machine Sewage Treatment Equipment with 1000kg Capacity

    1.Separation of oily(including emulsified) wastewater from petroleum, chemical and mechanical processes.
    2.Recovery of sewage organic matter.(such as recovery of pulp fibers and fillers from paper mill wastewater).
    3.Treatment of wastewater with high chroma and low dissolved oxygen.Such as textile printing and dyeing wastewater treatment .
    4.Treatment of oxide-rich wastewater containing algae.
    5.Treatment of low temperature and low turbidity sewage.
    6.Replace secondary sedimentation tank, suitable for the situation that is easy to produce sludge swelling;It is suitable for the concentration of residual activated sludge and convenient for the treatment of filter press.
