Screw Press Separation machine For manure drying

The main body ofScrew Press Separator For Sludge Dewatering consists of both thicken stage and dewatering stage. The screw axis is inside the middle of the machine, the thicken and dewatering stage are formed by fixed ring and moving ring respectivey, equipped with automatic cleaning system. When dewatering, the moving ring will clean the gap timely under the impelling of screw axis, to avoid blocking; and meantime save cleaninf water and largely guarantee of continuously and stable of plant operation

Volute Sludge Dewatering Machine belongs to the screw press, it's clog-free and can reduce the sedimentation tank and sludge thickening tank, saving the cost of sewage plant construction. it using screw and the moving rings to clean itself as clog-free structure, and controlled by the PLC automatically, it's a new technology that can replace the traditional filter press like belt press and frame press, the screw speed is very low, so it cost low power and water consumption in contrast to the centrifuge, it is a cutting edge sludge dewatering machine.

1.Non-clogging design, 24h running automatically.

2.Self-cleaning, little rinsing water.

3.Low-concentrated sludge handling.

4.Energy saving. Saving power, 1/20 of centrifugal.Saving water, 1/8 of belt press.

5.All-in-one design, save construction cost.

6.Low maintenance cost.

7.Low noise and little vibration.

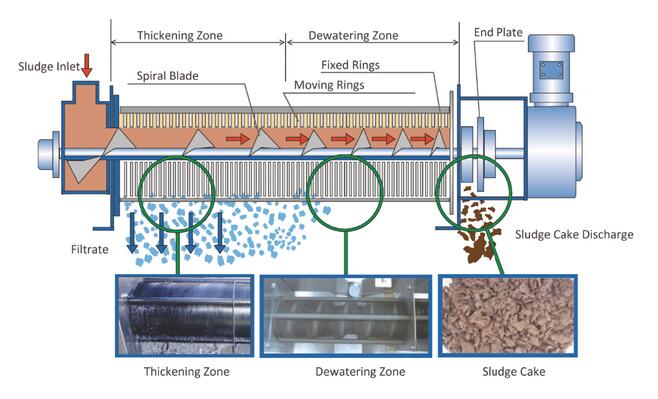

Working principle:

The wastewater is pushed into the dewatering machine.The sludge will move to the sludge cake outlet under the pressure of the helical aixs blades. Becuse the gap among the helical blades become narrower,so the sludge bear heavier pressure and began to dewatering under the pressure. The water comes out from the space between fixed and moving plates.

1.Municipal Wastewater / Urban sewage / Domestic wastewater

2.Palm oil mill wastewater / oilfield wastewater / oil sludge

3.Printing-dyeing wastewater

4.Pulp wastewater / Paper-making wastewater

5.Other industrial wastewater
