Solid-liquid Separation Centrifuge for Wastewater Treatment at Competitive Prices

Ask Lasest Price
Brand Name :	Better
Supply Ability :	200 Set/Sets per Year
Price :	$5,999.00/sets 1-1 sets

Add to Cart

Product Details
Company Profile

Solid-liquid Separation Centrifuge for Wastewater Treatment at Competitive Prices

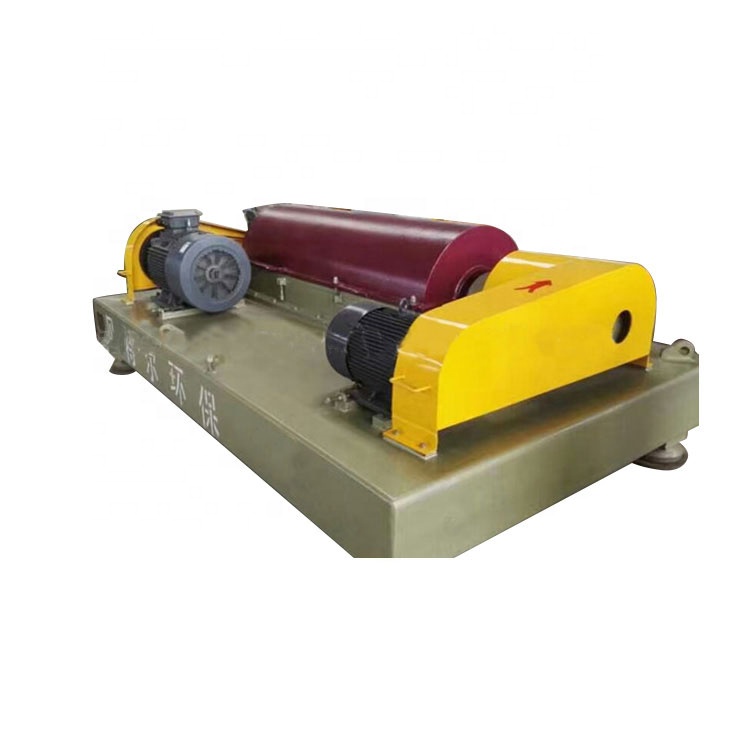

Horizontal type spiral centrifugal machine for sludge dewatering

Product Description

Horizontal spiral sedimentation centrifuge horizontal screw centrifuge for short, it is a kind of horizontal screw unloading, continuous operation, high efficient centrifugal separation, settling equipment. Can generally be divided into horizontal screw centrifuge filtering horizontal spiral centrifuge and horizontal spiral sedimentation centrifuge. Horizontal screw centrifuge suitable for industrial and civil sewage treatment process of sludge dehydration, but also widely used in chemical industry, light industry, pharmaceuticals, food industry, environment protection, etc.

Solid-liquid Separation Centrifuge for Wastewater Treatment at Competitive Prices

Technical Parameter

Model	Drum Diameter×Length (mm×mm)	Drum Speed (r/min)	Weight (Kg)	Overall Size (mm×mm×mm)
LW-250A	φ250×1040	4800	1200	2330×1200×755
LW-350A	φ350×1550	4500	2000	2680×1200×755
LW-430A	φ430×1763	4000	3000	3160×1410×866
LW-450A	φ450×1800	4000	3500	3210×1470×930
LW-500A	φ500×2100	4000	4000	3680×1650×960
LW-530A	φ530×2230	3800	4500	3820×1750×1000
LW-650A	φ650×2600	2800	6000	4260×1900×1150
LW-720A	φ720×2880	2520	8000	4700×2200×1400

Work Principle

While drum and spiral are rotating fast with a certain differential speed, material are introduced into transporting spiral internal cylinder continuously from feed pipe, then enter into drum after speeding up. The heavier solid phase matter would deposit on the drum wall and form sediment layer under the role of centrifugal field. Transporting spiral will push the sedimentary solid phase content to the cone point of drum continuously, and discharge out of the machine from slag-drip opening. The lighter solid phase matter form lining liquid loop, and overflow out of drum from main opening, then discharge out of machine from drain connection. This machine can complete feeding, separating, washing and discharging continuously while working at full speed.

Features

(1)Good adaptability: fully considered all kinds of special requirements suggested by material and technology, optimization design is implemented to the main components of appropriability and adjust ability. As long as users explain its installation place, physical chemical properties of material processing and technological requirements before buying, we will provide the applicable model.
(2) High degree of automation: this machine completes feeding, separating, discharging etc. automatically while working with high speed.It realized automatic control of centrifugal separation and centrifugal washing by using programmable controller.
(3)Good operating stability: the differential using by this machine is cycloid gear differential or planet gear differential, it features large torque, extensive adjusting range etc.
(4)Good manufacturability: adopting double electrical machine and double frequency conversion energy regeneration differential rotating speed system to control, adjusting differential rotating speed flexibly and infinitely variable and regulating differential rotating speed momentarily according to the change of material.It is the real energy saving product.
(5)Good operating environment:centrifugal machine separates material under fully closed condition. That ensures operating site neat and non-pollution, and realizes the civilization production.
(6)complete and reliable safety protection device: it is equipped with torque protection, power control etc., can effectively eliminate or reduce the damage caused by sudden fault.
(7) Attractive appearance: engine base adopting high quality carbon steel to weld, and surface is smooth after special fabrication processing.It seems integral aesthetic feeling as the compact size and beautiful appearance.

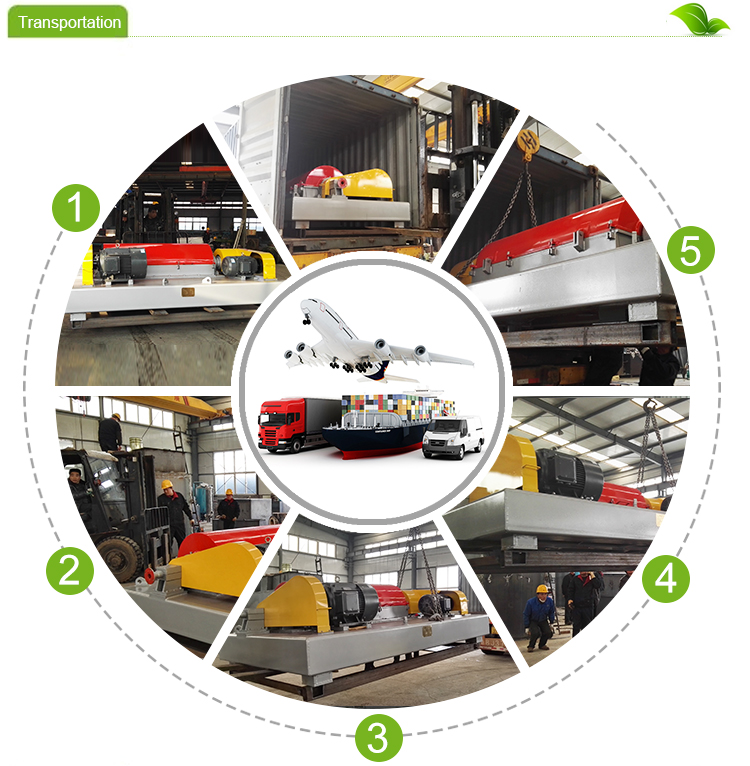

Packaging and Shipping

After Sales Service

Our Services:

1. Detailed installation manual and maintenance guideline are provided with the equipment.

2. Technical training and site commissioning and installation are available for you.

3. Any equipment issue, we will stand by. However, the visa fee, air tickets, accommodation, wages will be paid by buyers.

Company Profile

Shandong Better Environmental Protection Technology Co., Ltd. is a direct manufacture factory with ten years experience in waste management and waste water treatment equipment.

During the past decade, we won very good reputation among our customers all over the world by the perfect production and reliable quality, such as USA,Turkey, Japan, Saudi Arabia, Bangladesh, Iraq, Vietnam, Singapore, Maldives, Malaysia, Argentina, Colombia, Ecuador, Mexico, Mongolia, UZ, Congo, Senegal, Nigeria, Trinidad and Tobago, Kuwait,Kenya, etc, and got the National Patent for our products.

“There is no best, only Better”, it is the pursuit we will never stop. We sincerely look forward to cooperating with friends at home and abroad and warmly welcome you to cooperate together for creating the better.

FAQ

1.Q:Are you a factory or trading company? A: We are a factory, we have rich experience for manufacturing water processing equipment for more than 10 years.

2.Q:Where is your factory located? How can i visit there? A: Our factory is located in No.1137, Zhucheng city, Shandong Province, China. It is about 2 hours from Qingdao airport. We can pick you up if you need, welcome to visit our factory.

3.Q: Do you have minimum order quantity request? A: No minimum order, but it can get a discount if you order a large quantity.

4.Q: Do you have certificates? A: Yes, we have ISO,SGS certificate.

5.Q: Can you meet my special requirements for my products? A: Yes, we have a professional design team. We can provide drawings according to your requirements.

6. Q: How to buy your idea products? A: You can provide us your water sources, water quality, flow rate and ground area (contact us for more details).

7. Q: How to pay? A: T/T and L/C are acceptable and T/T will be more appreciated. 30% deposit before producing, 70% balance before loading by T/T.

8. Q: What is the delivery time? A: It depends on order quantities. Generally speaking, the delivery time will be within 4 to 6 weeks.

9. Q: How to pack the products? A: We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by customers.

10. Q: How to keep your equipment from corrosion? A: We use the world-famous paint, like Sigma Coatings, PainBow,etc. What's more, we paint strictly according to the standard process.

11. Q: How do you manufacture your equipment? A: Our machining technology includes laser/plasma cutting, automatic welding, CNC cutting and bending.

12. Q: How to install after the equipment arriving destination? A: We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you. However, the visa fee, air tickets, accommodation, wages will be paid by buyers.
