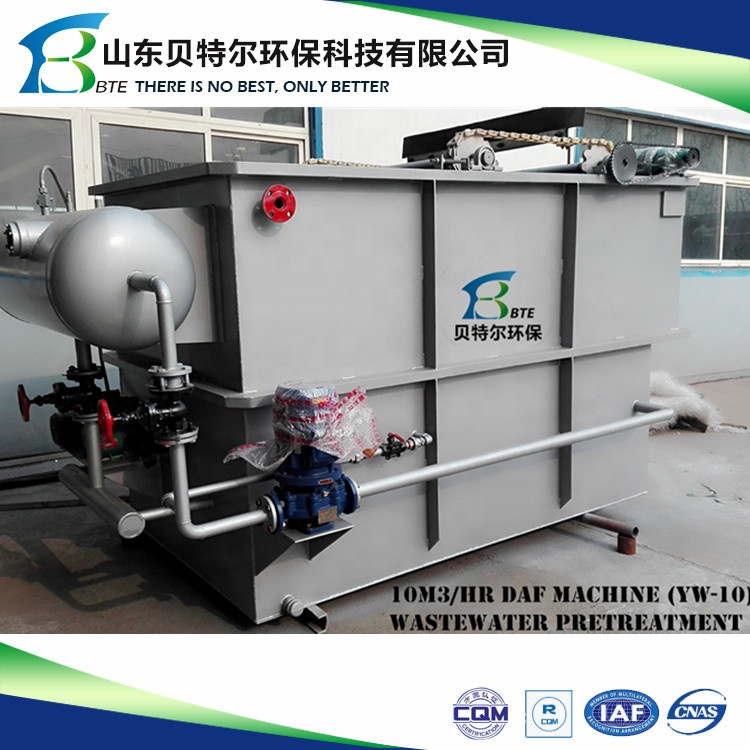

    Small DAF Unit For Oily Waste Water Treatment Plant 5-10m3/Hour 304 Stainless Steel

    Ask Lasest Price
    Brand Name : Better
    Supply Ability : 30 Set/Sets per Month
    Price : $3,600.00/sets 1-4 sets
    • Product Details
    • Company Profile

    Small DAF Unit For Oily Waste Water Treatment Plant 5-10m3/Hour 304 Stainless Steel

    Solid and Liquid Separator, CE certified DAF Unit

    (2-300CBM/hr. customized capacity)

    Small DAF Unit For Oily Waste Water Treatment Plant 5-10m3/Hour 304 Stainless SteelSmall DAF Unit For Oily Waste Water Treatment Plant 5-10m3/Hour 304 Stainless SteelSmall DAF Unit For Oily Waste Water Treatment Plant 5-10m3/Hour 304 Stainless SteelSmall DAF Unit For Oily Waste Water Treatment Plant 5-10m3/Hour 304 Stainless Steel Small DAF Unit For Oily Waste Water Treatment Plant 5-10m3/Hour 304 Stainless Steel

    Product Description

    Application

    Corresponding water quality: high SS, and the specific gravity of suspended solids or contaminants is generally slight greater than water, settle effectively and have a pretty clear tendency to precipitate, like:

    Oil and Fats, Food Industry effluents with high solids concentration,
    Sludge Thickening,
    Galvanizing Electroplanting,
    Leather Industry,etc.

    Technical Parameter


    Specification

    Capacity (m3/h)

    Dissolved gas water

    (m3/h)

    Main dynamo power (kw)

    Foam scraper power

    (kw)

    Air compressor power

    (kw)

    Dissolved air tank size

    (mm)

    Overall dimension (mm)

    YW-5

    4-5

    1.5-2

    3

    0.37

    1.5

    Φ400x1000

    3300x1800x2200

    YW-10

    8-10

    2-3

    3

    0.37

    1.5

    Φ500x1512

    4000x2100x2200

    YW-20

    15-20

    5-7

    7.5

    0.37

    1.5

    Φ500x1512

    4600x2400x2200

    YW-30

    20-30

    6-10

    7.5

    0.37

    1.5

    Φ500x1512

    5200x2600x2400

    YW-40

    30-40

    8-13

    7.5

    0.55

    1.5

    Φ600x1880

    6000x2600x2400

    YW-50

    40-50

    15-20

    7.5

    0.55

    1.5

    Φ600x1880

    7000x2600x2400

    YW-60

    50-60

    18-27

    7.5

    0.55

    1.5

    Φ600x1880

    7600x2800x2400

    YW-80

    70-80

    24-32

    7.5

    0.55

    1.5

    Φ650x2034

    9200x2800x2400

    YW-100

    90-100

    30-35

    15

    0.55

    3

    Φ700x1980

    10000x2800x2600

    YW-150

    125-150

    60-80

    22

    1.1

    3

    Φ800x1980

    13500x2800x2600

    YW-200

    175-200

    80-100

    22

    1.1

    3

    Φ800x2100

    15800x2800x2600

    YW-250

    225-250

    110-120

    22

    1.1

    3

    Φ800x2400

    15200x3400x2600

    YW-300

    280-300

    120-180

    37

    1.1

    5.5

    Φ1000x2900

    19200x3400x2800


    A. Sedimentation type:

    B. Flat bottom type

    C. Civil Works Project:

    Our Services

    Solution Advice, Installation &. Operation Guide


    If you are interested in our products, pls contact me.


    1. We consistent good quality with reasonable price.
    2. Big company, good reputation, more reliable.
    3. Delivery in time.
    4. Over 20 years' experience since 1991.

    5.Considerable after-sales service.
