Video Technical Support Sewage Treatment Plant Water Filter System and DAF Equipment

Sewage equipment Water filter system daf wastewater treatment sewage treatment plant

Product Description

Video Technical Support Sewage Treatment Plant Water Filter System and DAF Equipment

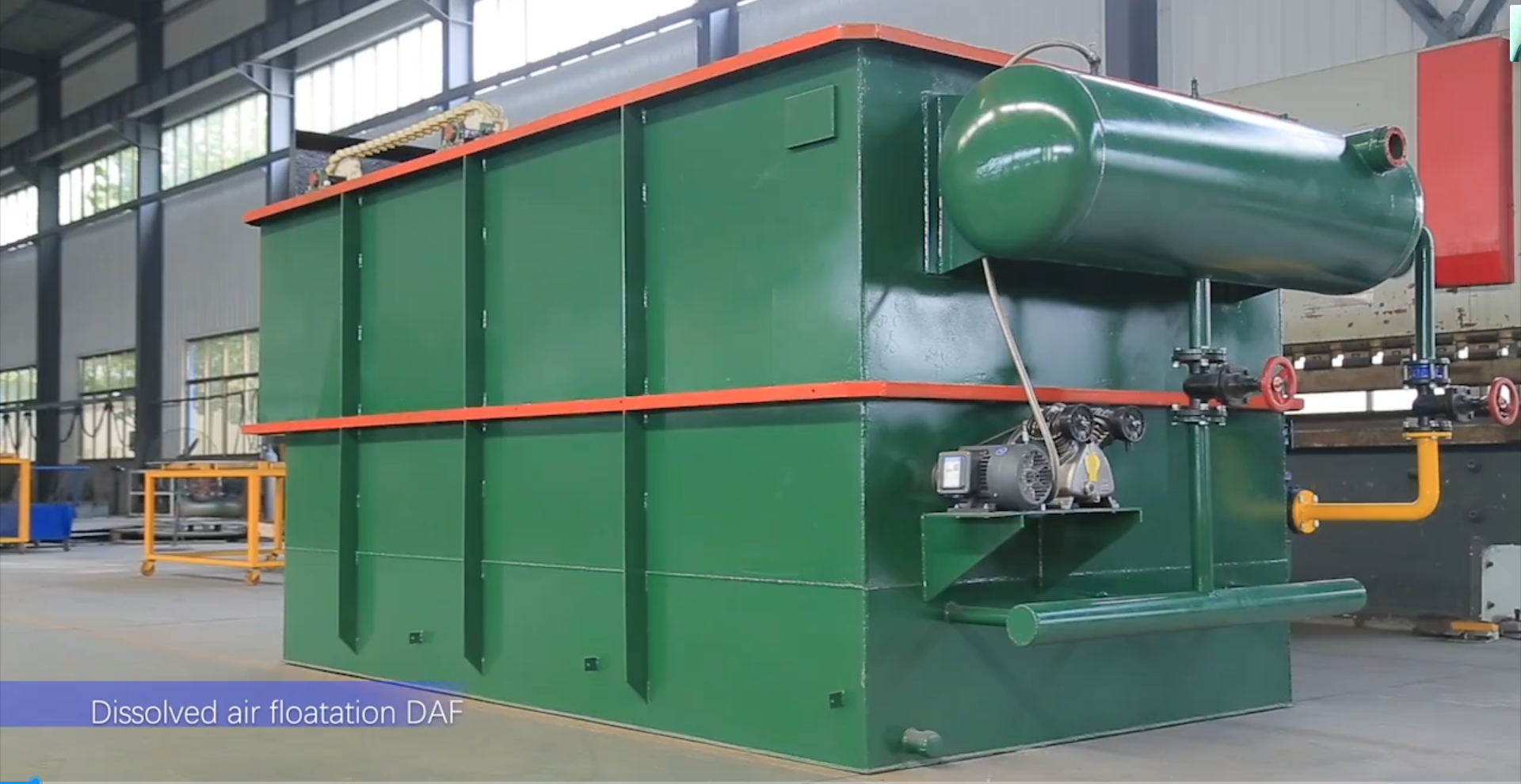

YW series Dissolved Air Flotation is mainly for solid-liquid or liquid-liquid separation. Large sum of micro bubbles produced by dissolving and releasing system adhere to solid or liquid particles with same density as waste water to make the whole float to the surface thus achieve the aim of solid-liquid or liquid-liquid separation.

Size Information

Model	Capacity (t/h)	Dissolved gas water (t/h)	Main dynamo power kw)	Foam scraper power (kw)	Air compressor power (kw)	Dissolved tank size (mm)	Overall dimension (mm)
YW-5	4-5	1.5-2	3	0.55	1.5	400*1000	330018002200
YW-10	8-10	2-3	4	0.55	1.5	500*1512	400021002200
YW-15	10-15	4-6	7.5	0.55	1.5	500*1512	440024002200
YW-20	15-20	5-7	7.5	0.55	1.5	500*1512	460024002200
YW-30	20-30	6-10	7.5	0.55	1.5	500*1512	520026002400
YW-40	30-40	8-13	7.5	0.75	1.5	600*1880	600026002400
YW-50	40*50	15*20	7.5	0.75	2.2	600*1880	700026002400
YW-60	50-60	18-27	11	0.75	2.2	600*1880	760028002400
YW-70	60-70	22-30	11	0.75	2.2	650*2034	840028002400
YW-80	70-80	24-32	11	0.75	2.2	650*2034	920028002400
YW-105	90-105	30-35	15	1.1	3	700*1980	1000028002600
YW-150	125-150	60-80	22	1.1	4	700*1980	1350028002600
YW-200	175-200	80-100	30	1.1	5.5	800*2100	1580028002600
YW-250	225-250	100-120	37	1.1	5.5	800*2400	1520034002600
YW-300	280*300	120*180	37	1.1	5.5	1000*2900	1920034002800

Features:

1. Design treatment capacity:4-300 m3/h. 2. High-rate clarifier for high SS water (light particles, oil and colloid). 3. Fully (100%) manufactured in the factory, and no need secondary welding. It costs 3h for 2 manpower to assemble. 4. Indoor or outdoor layout (environmental temperature should be over 0°C). 5. Apply to automatic & continuous operation. 6. Design life:

Carbon steel material: >10 years; 304 Stainless steel material: >20 years. 316 Stainless steel material: >25 years.

Advantages:

1. Extremely high scrapping speed (2-3 times faster than conventional design) and safety operation because of using fully reverse and closed scraper.

2. High hydraulic load and low footprint because of horizontal plates in the separation zone, more effective separation and optimization hydraulic flow in the separation area. 3. Better outlet water quality because of W-shape sludge sedimentation hopper. 4. Effectively minimize chemical consumption because of re-flocculation performance of reverse scraping design. 5. No blind angle in scum collection chamber.

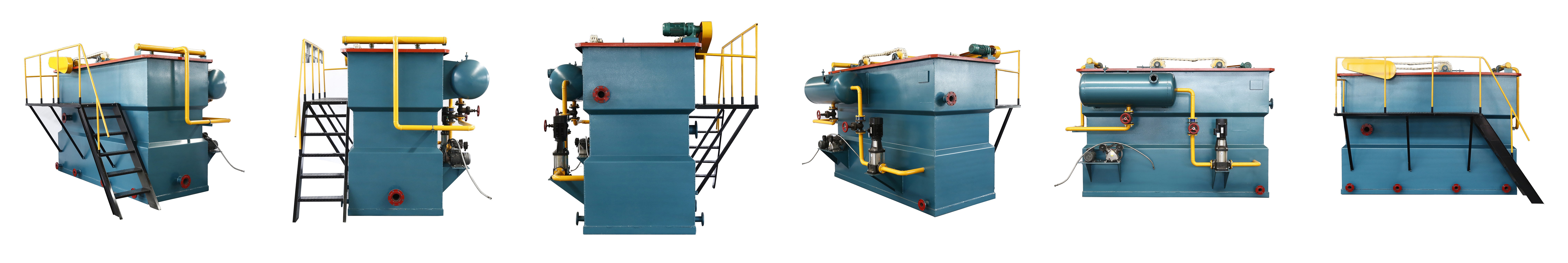

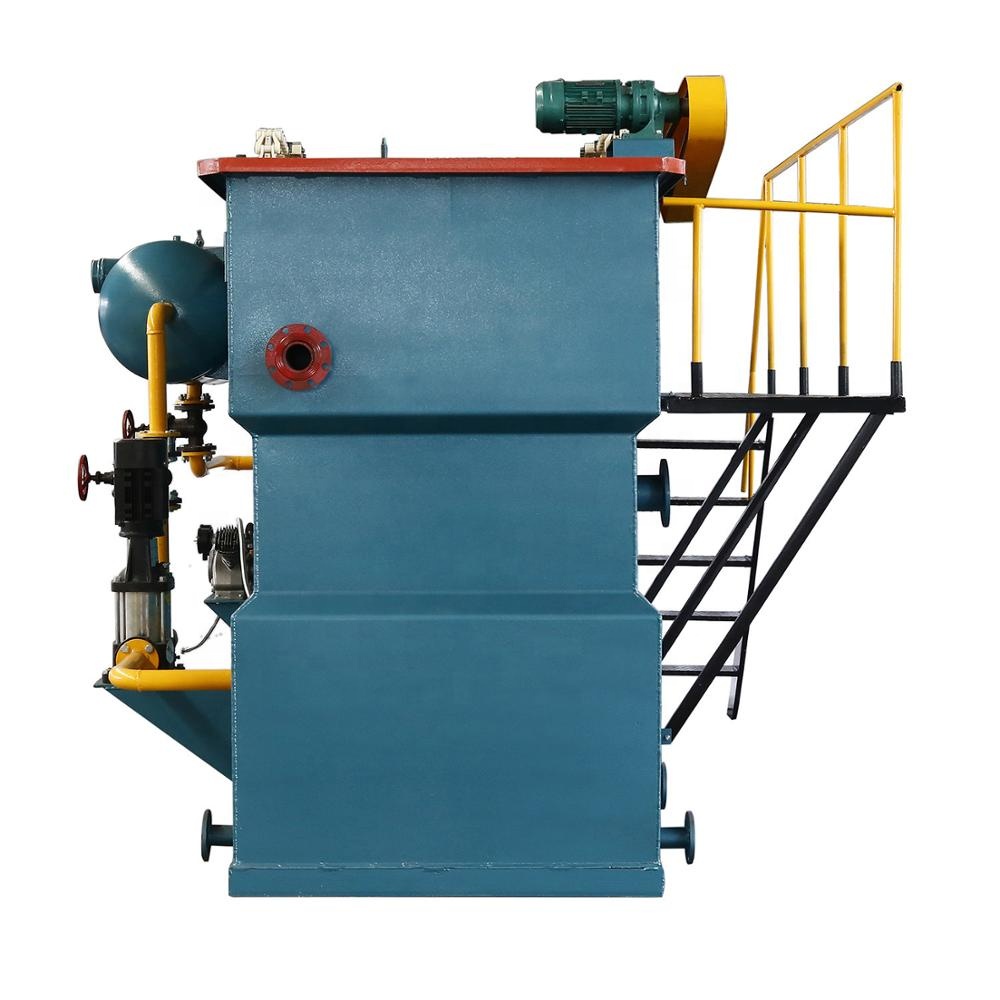

Detailed Images

Related Products

Packing&Shipping

After Sales Service

Our Service:

1. Detailed installation manual and maintenance guideline are provided with the equipment.

2. Technical training and site commissioning and installationare available for you. 3. Any equipment issue, we will stand by. However, the visa fee, air tickets, accommodation, wages will be paid by buyers.

Company Introduction

Shandong Better Environmental Protection Technology Co., Ltd. is a direct manufacture factory with ten years experience in waste management and waste water treatment equipment. During the past decade, we won very good reputation among our customers all over the world by the perfect production and reliable quality, such as USA,Turkey, Japan, Saudi Arabia, Bangladesh, Iraq, Vietnam, Singapore, Maldives, Malaysia, Argentina, Colombia, Ecuador, Mexico, Mongolia, UZ, Congo, Senegal, Nigeria, Trinidad and Tobago, Kuwait, Kenya, etc, and got the National Patent for our products. “There is no best, only Better”, it is the pursuit we will never stop. We sincerely look forward to cooperating with friends at home and abroad and warmly welcome you to cooperate together for creating the better.

production line

Customer pictures

FAQ

Q1:How to buy the products? You can provide us your water sources, water quality,water quantity, water after requirement (connect us for more details). Q2:How to install after the equipment arriving destination? Don't worry.we provide on-site installation, debugging, training and Oversea Services. (engineers available to service machinery overseas) Q3: Can I get a discount price? Of course, please contact us directly. Q4:How to pack the products? We use standard package.( If you have special package requirements, we will pack as required.) Q5:What if the product has any problems in the future?

After-sales service provided.
